Custom Precision Workholding Solution by Karvi Engineering & Consultancy

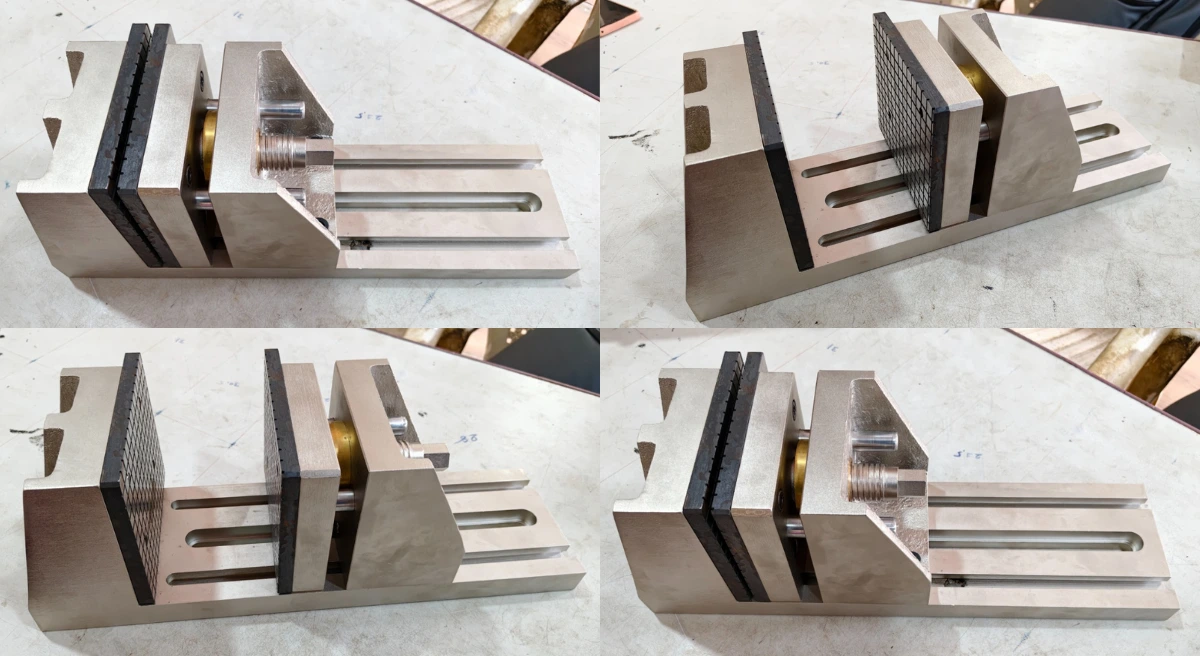

The Clamping Vice for Cutting Machine is a robust, precision-engineered workholding solution developed by Karvi Engineering & Consultancy for secure, reliable clamping of components during cutting, sawing, and general toolroom machining operations.
Designed for applications where conventional standard vices may not provide the required rigidity, mounting flexibility, or workpiece accommodation, this custom-built clamping vice combines a heavy-duty steel-alloy structure, precision jaw arrangement, smooth mechanical spindle operation, guided movement, and flexible machine mounting.
The vice can be customized according to the cutting machine, workpiece geometry, clamping range, and specific production requirements.
Product Overview
This custom clamping vice is specially designed for tool rooms, cutting machines, job shops, workshops, and industrial production environments where accurate and repeatable workpiece positioning is essential.
The rigid base construction provides a stable platform for cutting operations, while the guided movable jaw mechanism ensures controlled and consistent clamping. Replaceable precision jaw plates provide reliable workpiece contact and can be adapted for different component geometries.
The current catalogue design has an approximate overall size of 430 mm × 150 mm × 125 mm and a mass of approximately 23.51 kg. The assembly includes a base, jaw plates, a vice spindle, a guide arrangement, and machine-mounting slots.
Key Features
Heavy-Duty Construction
Robust construction designed to provide the rigidity required for industrial cutting and tool-room applications.
Steel Alloy Construction
Major components are manufactured using suitable steel alloys, selected according to the mechanical strength, wear resistance, and application requirements.
Electroless Nickel Plating
Selected components are provided with Electroless Nickel Plating for improved surface protection, corrosion resistance, wear characteristics, and a professional finish.
Precision Clamping
The rigid jaw arrangement provides secure workpiece holding to minimize unwanted movement during cutting operations.
Hardened Catcher – 60 HRC
The catcher is hardened to approximately 60 HRC, providing enhanced wear resistance for repeated industrial use.
Replaceable Jaw Plates
The jaw plates are designed to be replaceable, allowing easier maintenance and adaptation to different workpiece requirements.
Precision Ground Jaw Surfaces
The clamping surfaces can be precision finished to support accurate and repeatable component positioning.
Mechanical Vice Spindle
A mechanically operated vice spindle provides simple, dependable, and controlled clamping without the need for pneumatic or hydraulic power.
Square Drive Operation
The spindle incorporates a square-drive arrangement for convenient manual operation using a suitable tool.
Guided Jaw Movement
The guide-rod arrangement supports controlled movement of the movable jaw and helps maintain alignment during opening and closing.
Flexible Machine Mounting
Longitudinal mounting slots allow the vice assembly to be positioned and secured according to the cutting machine’s mounting arrangement.
Compact, Low-Profile Design
The compact construction provides good rigidity while helping maintain practical access to the workpiece and cutting area.
Customizable Design
The complete vice can be modified according to:
- Workpiece size
- Round, square, rectangular, or irregular components
- Required jaw opening
- Jaw width and height
- Base length and width
- Machine mounting pattern
- Cutting machine configuration
- Special jaw profiles
- Replaceable soft or hardened jaws
- Production cycle requirements
Technical Specifications
| Parameter | Specification |
| Product | Clamping Vice for Cutting Machine |
| Application | Tool Room / Cutting Machine / Industrial Workholding |
| Overall Size | Approx. 430 (L) × 150 (W) × 125 (H) mm |
| Base Length | 430 mm |
| Base Width | 150 mm |
| Overall Height | Approx. 125 mm |
| Jaw Opening | Up to approx. 125 mm* |
| Jaw Type | Hardened, precision-finished, and replaceable |
| Operating Mechanism | Mechanical Vice Spindle |
| Spindle Operation | Square Drive |
| Guidance | Guide Rod Arrangement |
| Machine Mounting | Through Slots / Longitudinal Mounting Slots |
| Material | Steel Alloys |
| Surface Treatment | Electroless Nickel Plating |
| Catcher Hardness | 60 HRC |
| Approximate Mass | 23.51 kg |
Final jaw opening and dimensions can be customized according to the application.
The engineering drawing identifies the base, jaw plate, vice spindle, guide rod, and mounting slot arrangement and specifies dimensions in millimetres.
Typical Applications
The Karvi Clamping Vice is suitable for securely holding:
- Round bars and shafts
- Pipes and tubes
- Square bars
- Rectangular sections
- Flat components
- Machined components
- Forged parts
- Cut blanks
- Special-profile components
- Irregular workpieces with customized jaws
Suitable Machines & Work Areas
- Metal Cutting Machines
- Band Saw Machines
- Circular Saw Cutting Machines
- Tool Room Machines
- Job Work Machines
- Maintenance Workshops
- Machine Shops
- Production Cutting Stations
- Fabrication Shops
- ITI and Diploma Training Workshops
Round Workpiece Clamping
For round components such as bars, shafts, and cylindrical workpieces, the vice can be supplied with application-specific jaw profiles or locating arrangements.
This helps achieve:
- Better component positioning
- Reduced workpiece movement
- Improved cutting stability
- Repeatable loading
- Safer workpiece holding
Square & Flat Workpiece Clamping
The standard flat jaw configuration is suitable for clamping square, rectangular, and flat components.
Depending on the application, customized jaws can be developed for:
- Different section sizes
- Thin components
- Delicate finished components
- Multiple-component clamping
- Repetitive production work
Why Choose Karvi Engineering & Consultancy?
Custom Engineered
Every solution can be engineered according to the customer’s actual machine and workpiece requirements.
Application-Oriented Design
Rather than offering only a standard off-the-shelf vice, we can study the cutting process and develop a work holding solution around the actual application.
Precision Manufacturing
Critical components can be precision machined to achieve accurate and repeatable clamping performance.
Industrial-Grade Construction
Material selection and construction are focused on durability and long-term industrial use.
Custom Jaw Development
Special jaws, replaceable jaw plates, and component-specific clamping profiles can be developed.
Retrofit Capability
The vice can be designed as a customized retrofit solution for existing cutting machines and tool-room equipment.
Complete Engineering Support
Support can be provided from:
Application Study → Concept → Engineering → Manufacturing → Assembly → Testing → Installation Support
Custom Designs Available
Karvi Engineering & Consultancy can customize the clamping vice based on your specific requirements.
Customization Possibilities
- Overall vice dimensions
- Jaw opening capacity
- Jaw plate design
- Base dimensions
- Mounting slot pattern
- Guide arrangement
- Spindle configuration
- Special workpiece locators
- Component-specific jaw profiles
- Surface treatment
- Material grade
- Hardness requirements
- Machine interface
- Manual clamping arrangement
Customers can share their component drawing, workpiece sample, machine details, photographs, and required cutting process, and our team can develop a suitable customized workholding concept.
Need a Custom Clamping Solution?
If your existing cutting machine requires a special vice, fixture, workholding arrangement, or customized clamping solution, contact Karvi Engineering & Consultancy with your application details.
